Carbonio 360 EVO GEO
Carbonio 360 EVO GEO
Carbonio 360 EVO GEO
Carbonio 360 EVO GEO

Carbonio 360 EVO GEO

Regular price $1,039.99

Digital Pressure Gauge
Nozzle Diameter

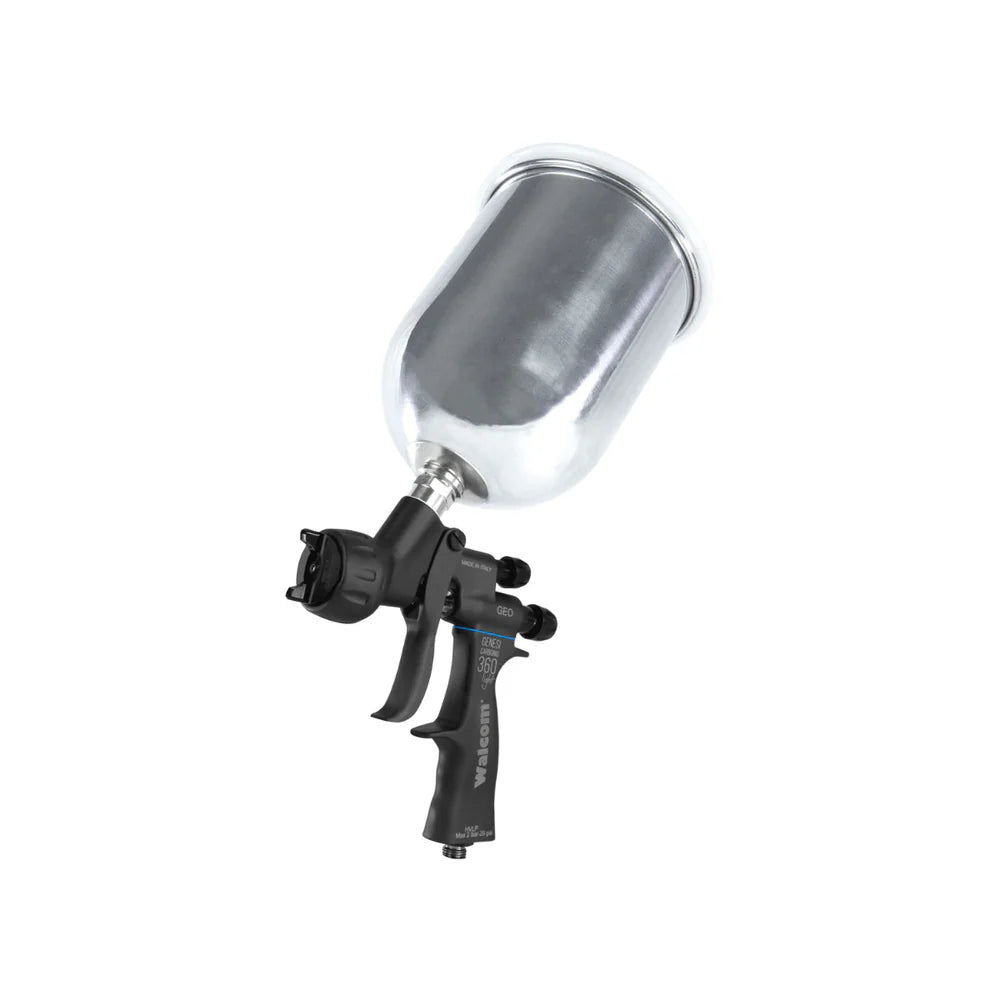

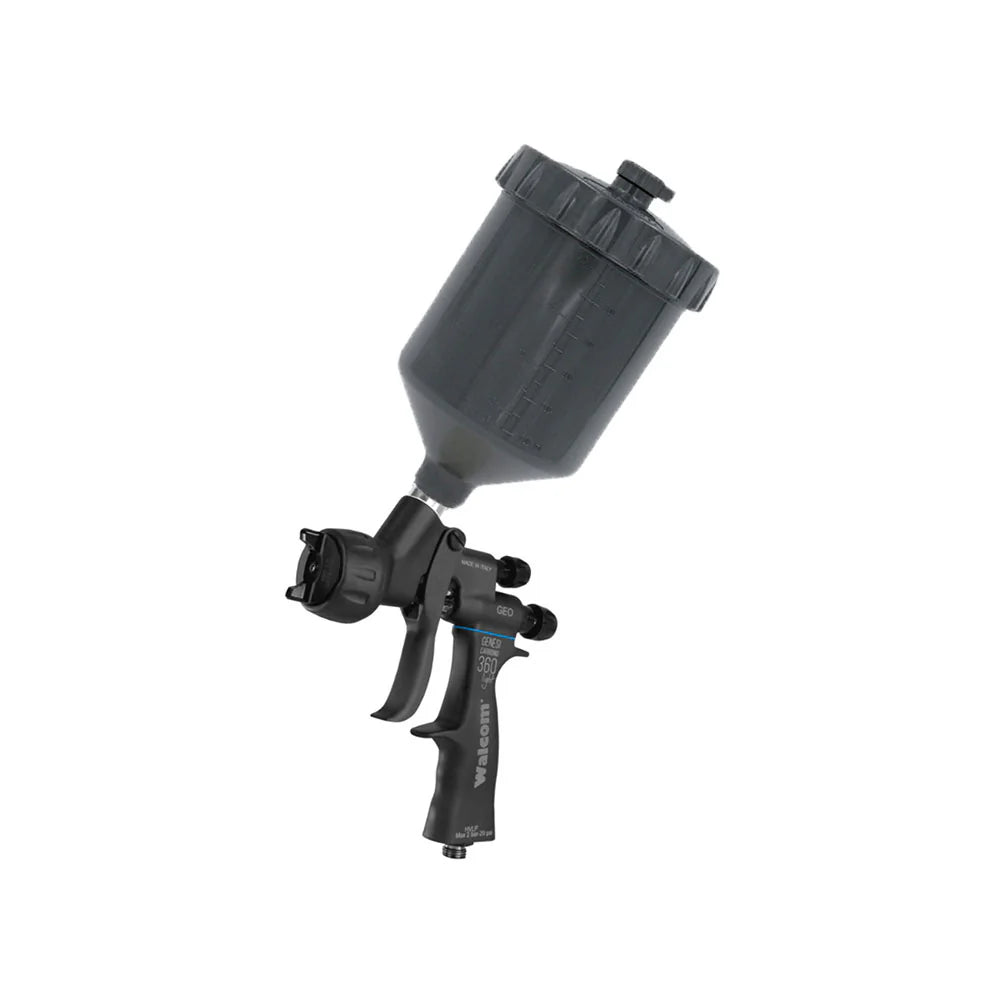

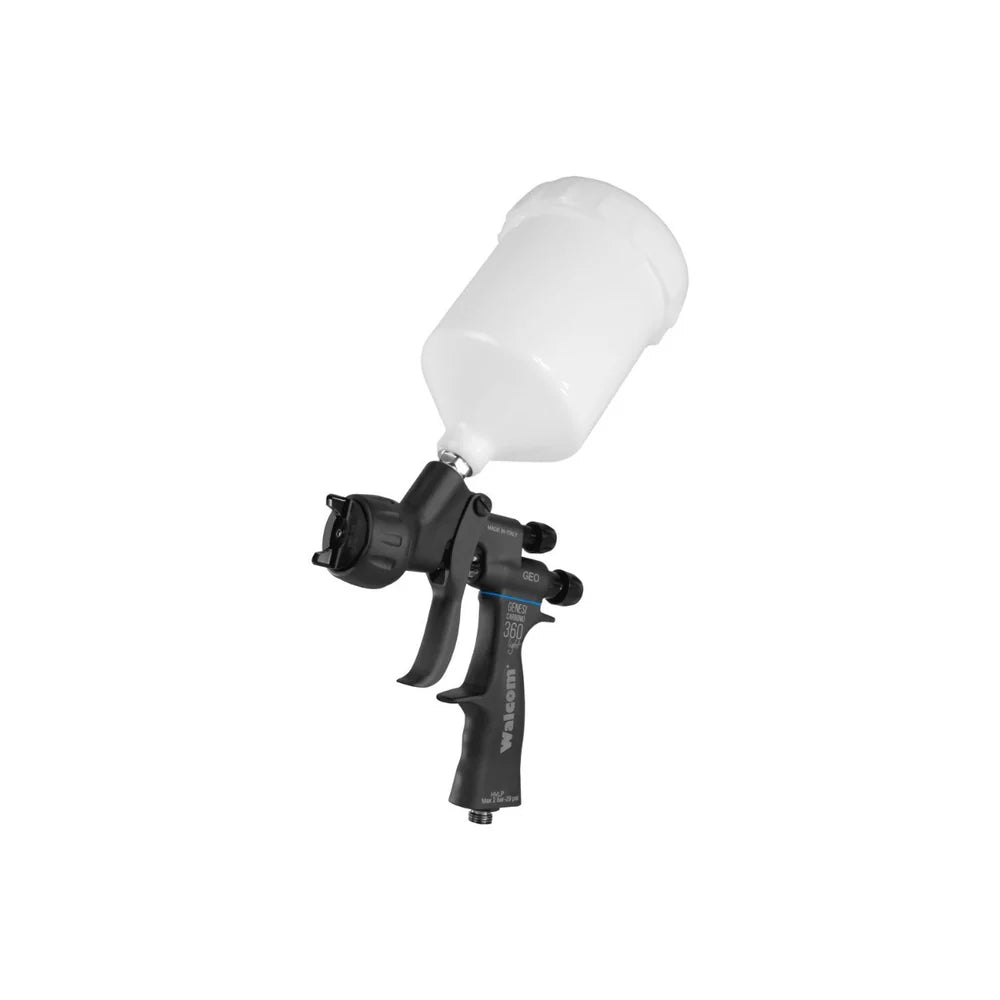

Genesi Carbonio 360 evo GEO

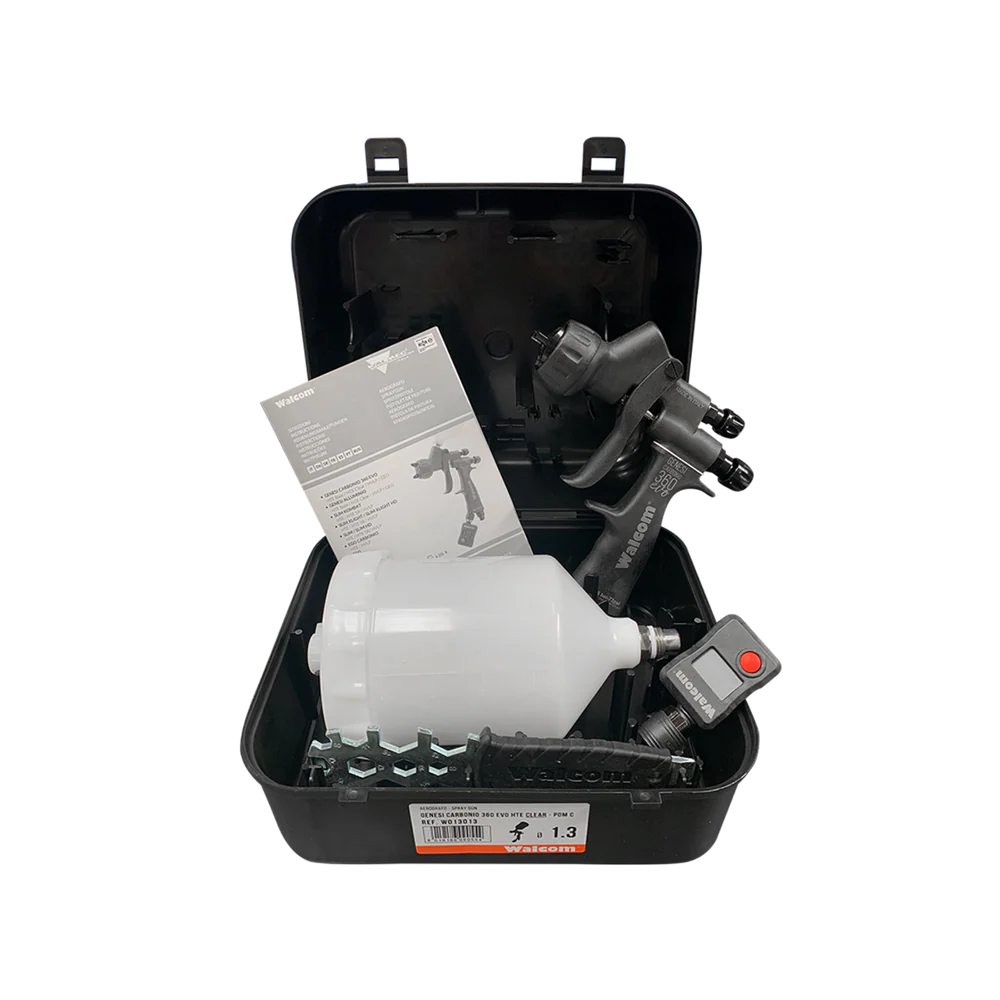

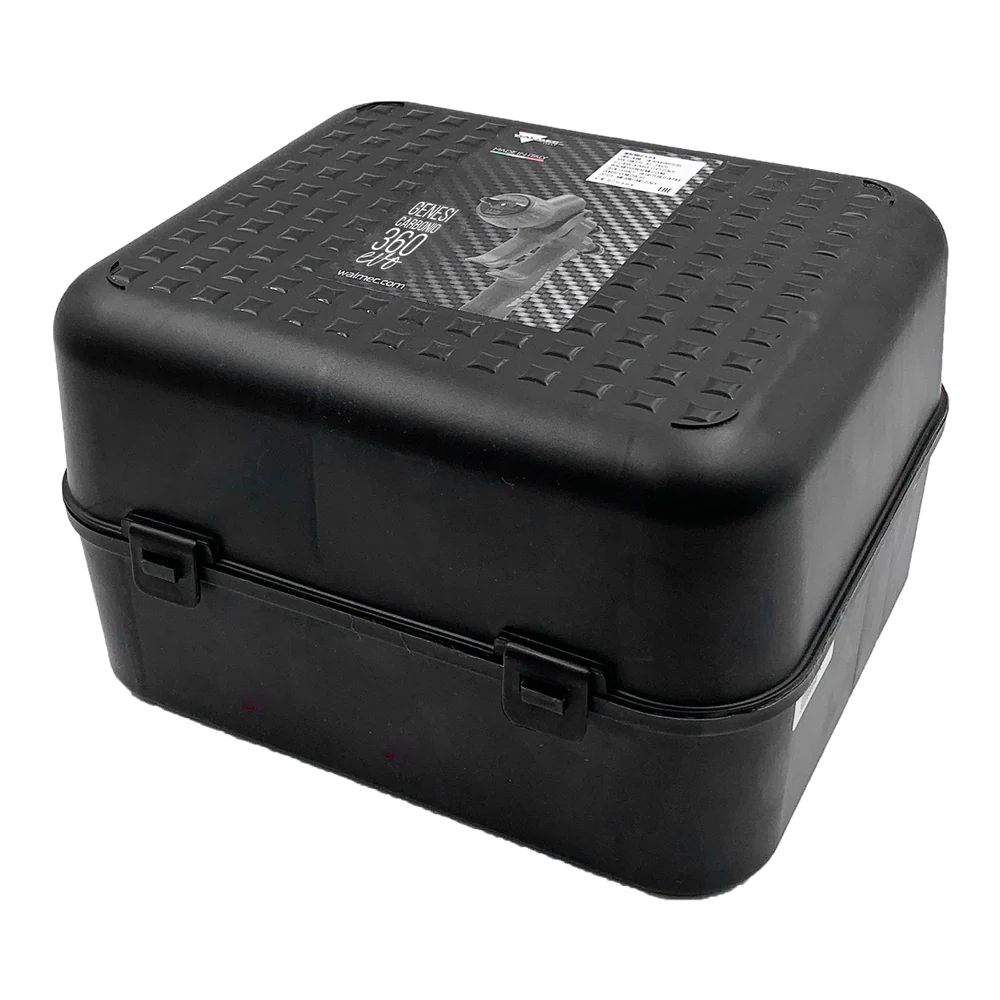

All Carbon Fiber EVO guns come with an internal regulator. rebuilt kit, wrench, and plastic carrying case.

Ideal for waterborne base and solvent

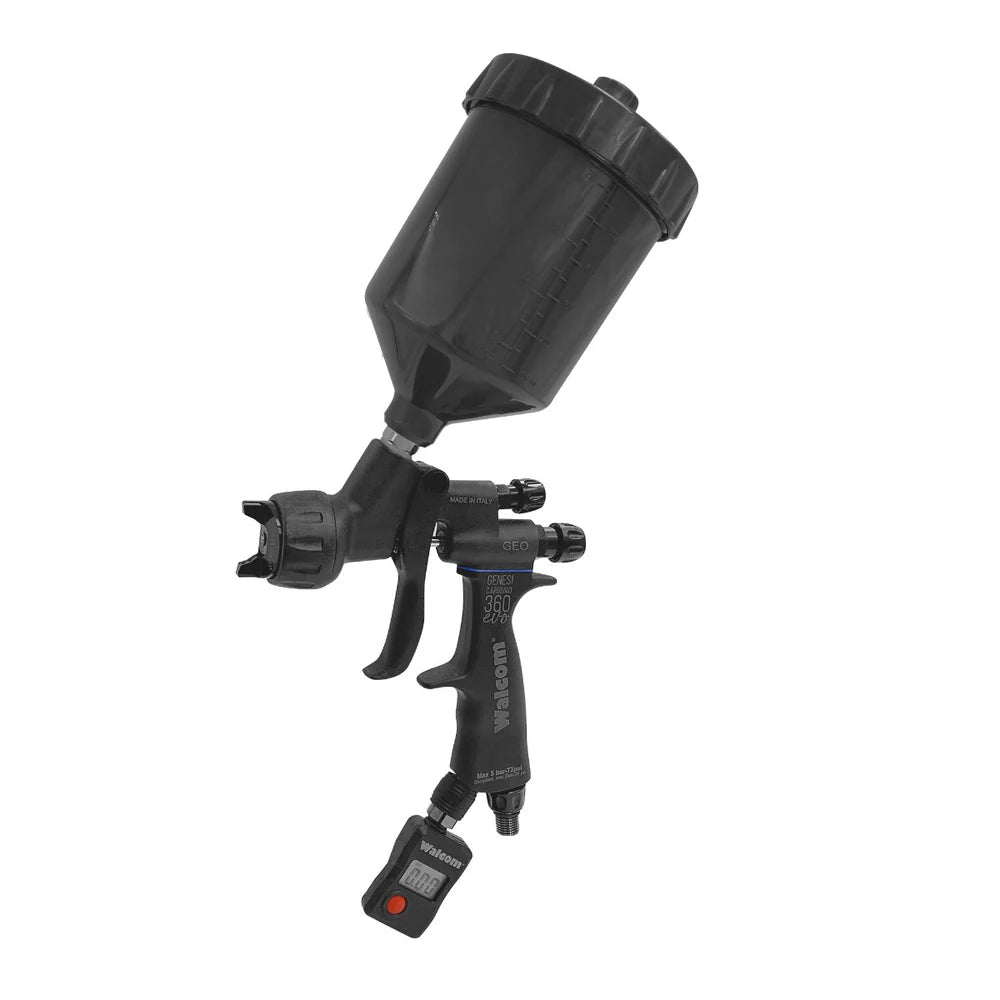

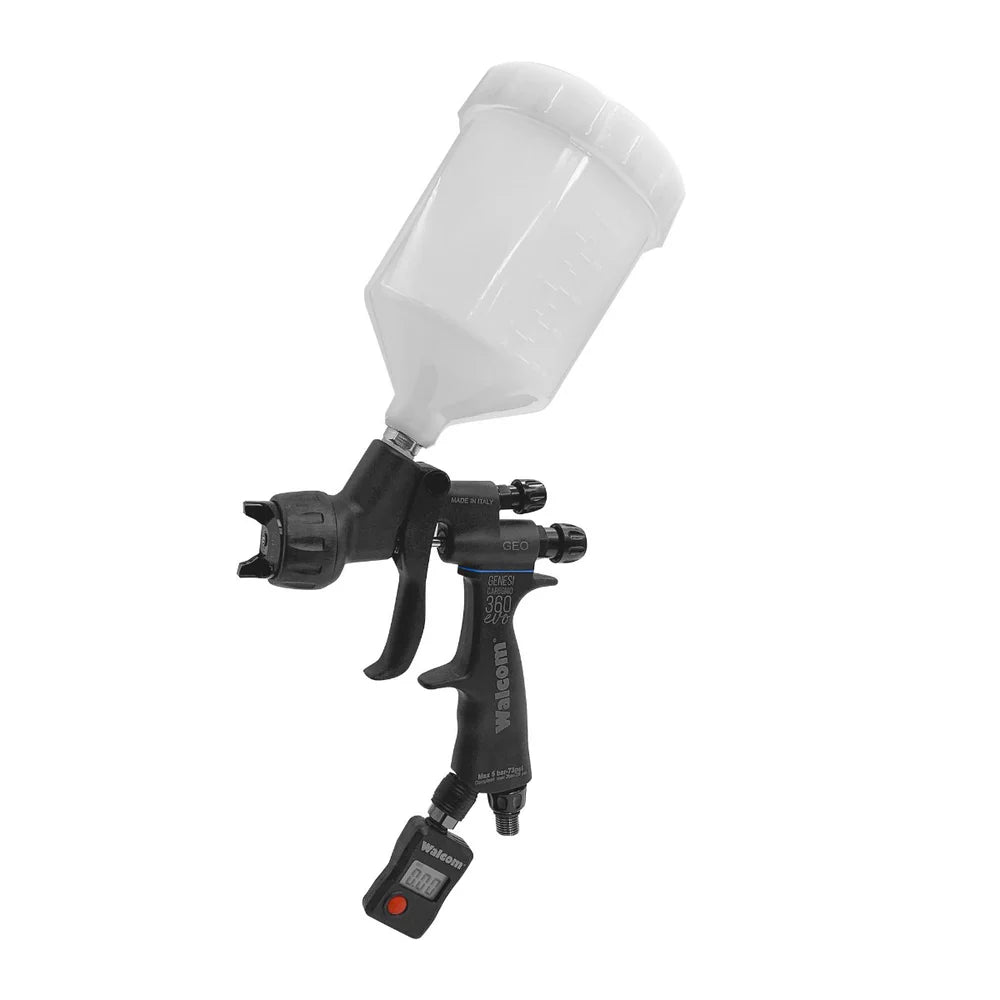

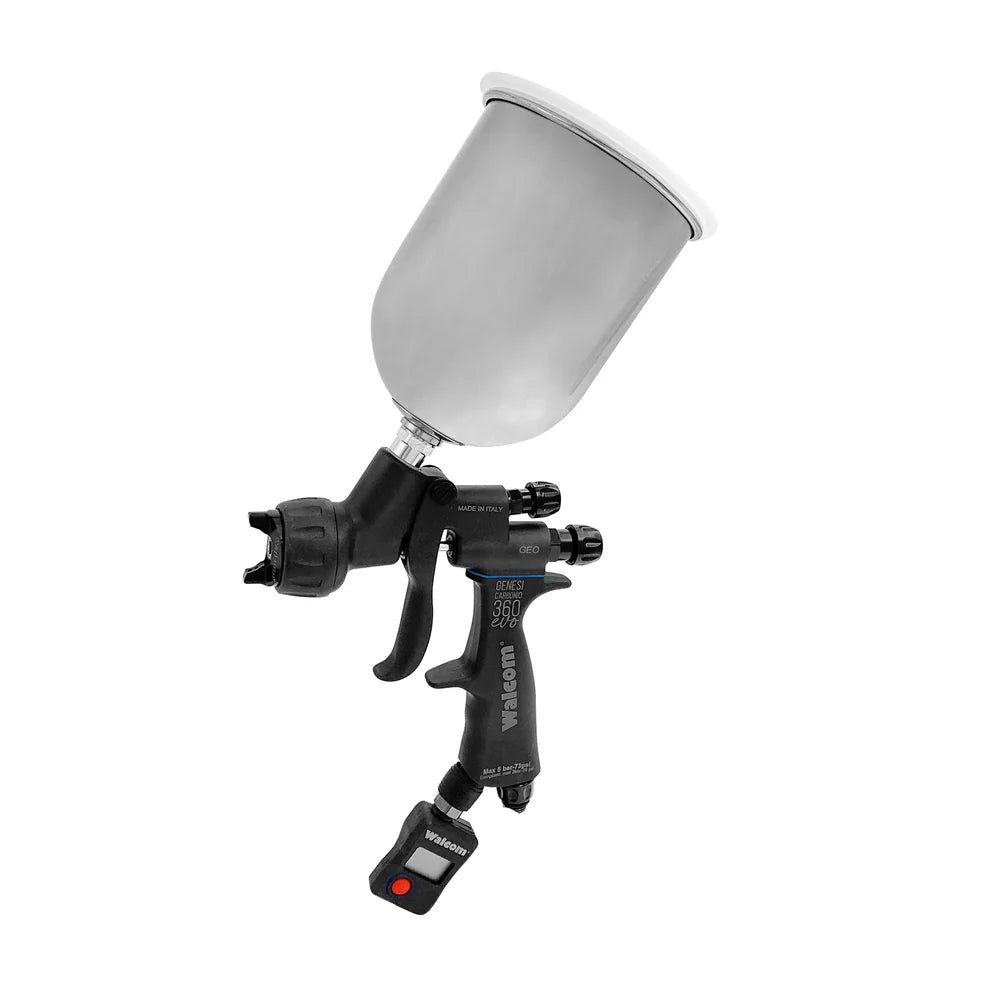

Genesi Carbonio 360 Evo is the evolution of the 360 light model, with an integrated air regulator on the air inlet and a digital pressure gauge connected directly to the spray gun body, it's even lighter and easier to handle, ergonomics and comfort are combined with superlative performance. Genesi Carbonio 360 Evo does not require the use of protective plugs for the spray gun washer unlike the competition, just close the air inlet and it is immediately ready for washing. The specific base air cap HP - High paint layout with proper distribution and flow orientation, 12 holes nozzle, precise and wide range of adjustment for fan and paint flow, are details that makes it a unique piece of equipment in the refinish application of the latest generation products.

Available in the US only.

Body: forged aluminum and carbon fiber

Handle and trigger: carbon fiber

Air cap: chemically nickeled plated brass

Air cap ring: carbon fiber

GEO nozzle: stainless steel AISI 303

Needle - springs: stainless steel AISI 303

Seal gaskets: self-lubricating and adjustable PTFE (Teflon)

Weight: 340 g

Operating air pressure: range 0,5 - 2,5 bar / HVLP max 2 bar

Air consumption: 425 l/min a 2 bar

Ø nozzle: 1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9

Digital pressure gauge and air control regulator with quick connection system, made of carbon fiber.

Add noozle diameter to Ref. (**)
